鈻8 Channel 5 in 1 HD 1080N DVR;
鈻Support AHD/TVI/CVI/CVBS/IP five signals;
鈻Support VGA, HDMI full HD output simultaneously;
鈻Support ONVIF; access third party;
鈻Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
鈻Support web, CMS, center platform management software MYEYE, provide SDK development;
鈻Support various mobile monitoring (iPhone, Android);
鈻Remote Access, W ith DNS (ARSP),easy to monitor remotely
鈻Support UTC, control signal& video stream transmit through one single coaxial
鈻8 Channel 5 in 1 HD 1080N DVR;
鈻Support AHD/TVI/CVI/CVBS/IP five signals;
鈻Support VGA, HDMI full HD output simultaneously;
鈻Support ONVIF; access third party;
鈻Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
鈻Support web, CMS, center platform management software MYEYE, provide SDK development;
鈻Support various mobile monitoring (iPhone, Android);
鈻Remote Access, W ith DNS (ARSP),easy to monitor remotely
鈻Support UTC, control signal& video stream transmit through one single coaxial
|
System |
Main processor |
Hi3520D V300 |
|
Interface |
Preview |
1/4/8/9 |
|
Video |
Codec |
H.264 |
|
Monitor quality |
VGA,HDMI锛HD |
|
|
Preview ability |
8*1080N |
|
|
Encode ability |
8*1080N@12fps/4*1080P@15fps |
|
|
Decode ability |
8*1080N@12fps/4*1080P@15fps |
|
|
Multi-mode input |
analog锛 8*1080N锛4*1080P hybrid锛 2*1080P锛analog锛+2*1080P锛network锛; 4*1080N锛analog锛+4*960P锛network锛 network锛16*1080P; 9*1080P;16*960P; 4*5M |
|
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-levelsensitivity can be set (Limited local channel) |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record &
playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local Playback |
8ch(analog input mode) |
|
|
Search mode |
Search by time, calendar, event, channel |
|
|
Storage &
backup |
Video storage |
HDD, network |
|
Backup mode |
Network, USBhard disk, USB burner, SATA burner |
|
|
External
Interface |

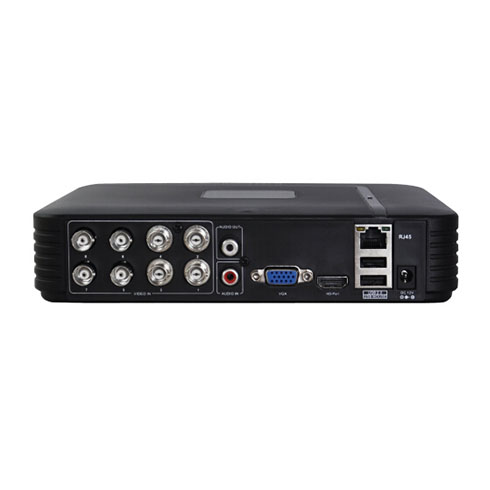

Video input |
8ch BNC |
|
Video output |
1ch VGA, 1ch HDMI |
|
|
Loop Vout |
N/A |
|
|
Audio I/O |
1锛Can be extended to4ch锛/1 |
|
|
Alarm I/O |
0锛Can be extended to 4ch锛/0锛Can be extended to 1ch锛 |
|
|
Network interface |
RJ45 10M/100M self-adaption |
|
|
PTZ control |
0 or 1*RS485, Support kinds of PTZ protocols |
|
|
USB |
2* USB 2.0 ports |
|
|
HDD |
1 pr 2*SATA ports (Max 6TB/per) |
|
|
Wireless |
3G, WIFI (extend via USB) |
|
|
General |
Power supply |
12V/2A or 12V/4A |
|
PowerConsumption |
<15W (without HDD) |
|
|
Workingenvironment |
Temperature:0鈩鈥+55鈩锛Humidity:10%鈥90%锛Atm:86kpa鈥106kpa |
|
|
Dimension |
mm*mm |
|
|
Weight |
g |
