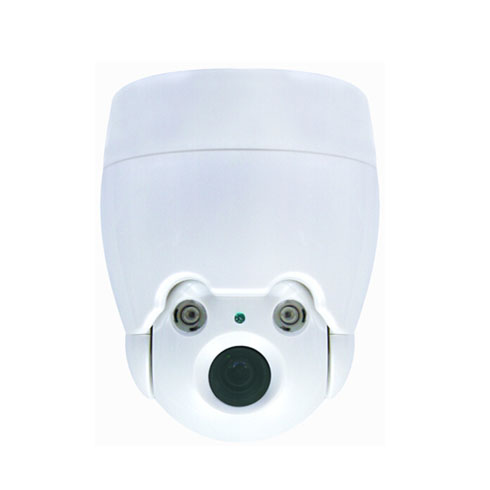

Camera

Sensor

1/3"  Progressive Scan CMOS

Total pixels

2.0 Megapixels

Effective Pixel

1080P 1920(H)X1080(V)

Lens

10X    f=5.1mm ~ 51mm

Iris

F1.6~F1.8

View of Angle

H:51.8°(wide)~5.86°(tele) V:39.1°(wide)~4.4°(tele)

Min. illumination

Color: 0.5Lux\  B/W: 0.05Lux

BLC

Support

AGC

Auto/Manual

D/N

IR-CUT

WB

Auto/manual/indoor/outdoor

S/N Ratio

≥50dB

Dome

DSP

Hi3516A

Communications Protocol

TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP

Software Control

IE, CMS, Management Platform, P2P

Storage(optional)

SD card

Mobile View(optional)

Android , iPhone

Horizontal Rotation Range

360°

Tilt Rotation Range

93°

Auto Flip

Horizontal 180°, Vertical 93°

Horizontal Rotation Speed

0.1 ～50°/s

A-B Scan

User programmable

A-B Scan Speed

1-64 grades setting available

Dwell Preset

1-60s

Preset Points

220

Go to Preset Speed

50°/s

Guard Tours

3 groups

Guard Points

Max.16 points, dwell time user selectable 02~60s

Park Action

Home position/360° scan/A-B scan/guard tour 1-3

Park Time

1-60mins available

Ambient light detection

Support

IR Illumination On

1-15 grade selectable

Baud Rate

1200/2400/4800/9600bps

Operating Temperature

Indoor: 0°~ +40°

Operating Humidity

≤95% Non Condensing

360° Scan

1-64 grades available

Power Supply

DC12V  2A

Power Consumption

≤15W

Lightning Protection

Transient voltage 3000V

Communication mode

RS485 (+/-)

Related validation

IP66,CE,FCC,RoHs

IR parameters

Auto Control IR LED

PWM

LEDs

Array 42Mil

IR distance

Up to 50 meters

IR illumination on

1-15 grades selectable

Support ambient light detection

 1-50 grades selectable
