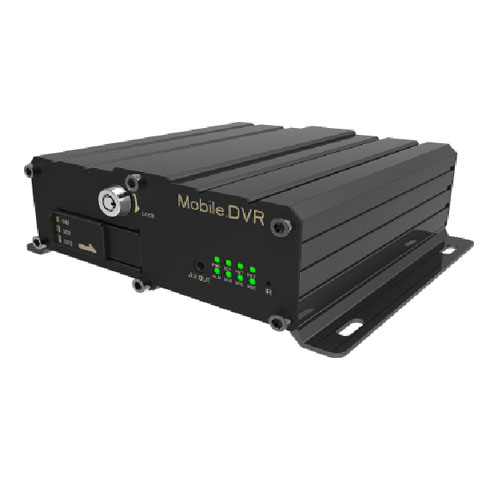

鈼 4 channel HD Car SD card Mobile DVR Kit
鈼 720P AHD million HD real-time storage
鈼 SD card slot design, each card slot maximum support 128G, large capacity storage, long video
鈼 Patent damping technology, the maximum protection of data
鈼 8-36V wide voltage design, suitable for a variety of vehicles, support low automatic shutdown
鈼 Exclusive private appearance, unique market, increase product competitiveness
鈼 4 channel HD Car SD card Mobile DVR Kit
鈼 720P AHD million HD real-time storage
鈼 SD card slot design, each card slot maximum support 128G, large capacity storage, long video
鈼 Patent damping technology, the maximum protection of data
鈼 8-36V wide voltage design, suitable for a variety of vehicles, support low automatic shutdown
鈼 Exclusive private appearance, unique market, increase product competitiveness
MDVR Specifications
| System | Language | Chinese, English |
| Operation interface | OSD menu | |
| Password security | User password and Administrator password | |
| Video | Video input | 4CH aviation connector |
| Video output |
1CH AV out + 1CH I/O port + 1CH aviation connector(VGA/BNC) |
|
| Video display | 1ch full screen/4ch split screen | |
| Signal system | PAL: 100 fps, CCIR 625tvl, 50 field | |
| NTSC: 120 fps, CCIR 525tvl, 60 field | ||
| Image compression | H.264 Main profile | |
| Audio | Audio input | 4CH aviation connector |
| Audio output | 1CH AV out port | |
| Compression format | G.726 | |
| Recording & Storage | Image resoluation |
4*AHD(720P) or 4*Analog(960H/D1/HD1/CIF) |
| Video coding | ISO14496-10 | |
| Video bit rate | CIF: 256Kbps~1.5Mbps, multilevel image quality optional | |
| HD1: 600Kbps~2.5Mbps, multilevel image quality optional | ||
| D1: 800Kbps~3Mbps, multilevel image quality optional | ||
| 720P: 1000Kbps~6Mbps, multilevel image quality optional | ||
| 8 video quality grades, highest grade 1 and lowest grade 8 | ||
| Audio bit rate | 5KB/s | |
| Storage | 2 SD card slots, each max support 128GB, loop recording, auto data overwrite | |
| Alarm | Alarm input | NO |
| Alarm output | NO | |
| Communication ports | RS232 | NO |
| RS485 | NO | |
| RJ45 network | NO | |
| USB | NO | |
| SIM card slot | 1 SIM card slot | |
| Wireless communication | 3G | NO |
| 4G | NO | |
| Wifi | NO | |
| GPS | Built-in GPS module optional, realtime geographic coordinates, speed information | |
| G-Sensor | NO | |
| Software | PC playback | Video playback and analysis by PC client |
| CMSV6 | Wireless realtime video & audio monitoring, positioning, alarms, etc. | |
| Software upgrade | Support SD card memory upgrade | |
| Electric parameters | ||
| Input voltage | DC+8V~+36V | |
| Output voltage | +12V, 2.5A; +5V, 2.5A | |
| Video input resistance | 1.0vp-p, 75惟 | |
| Video output voltage | 1.0vp-p, 75惟 | |
| I/O port | High level alarm | 5~24V |
| Low level alarm | <3V | |
| Operation temperature | -20鈩 to +70鈩 | |
| Dimension | 168mm*143mm*56mm | |
Cameras Specifications
| DSP | NVP2431 |
| Image sensor | 1/4鈥矯MOS AR0141 |
| Resolution | 720P/1.0MP 1280(H)*800(V) |
| System | PAL/NTSC |
| IR Led | 24pcs |
| Video out | AHD |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | Auto |
| Noise Redution | 3D |
| Illumination | 0.01Lux/F1.2锛IR Led On锛 |
| Lens Mount | M12 |
| Lens | 3.6mm锛optional 2.8 or 4mm锛 |
| Field of View | 90掳 |
| IR range | 15m |
| Operating temperature | -20鈩冿綖+60鈩 |
| Video Connector | Aviation锛or BNC) |
| Power Supply | DC 12V |
| Water Proof | IP69 |
| Color/material | black-metal |
| Size(mm) | 89*77*63 |
| Weight(g) | 0.27KG |
