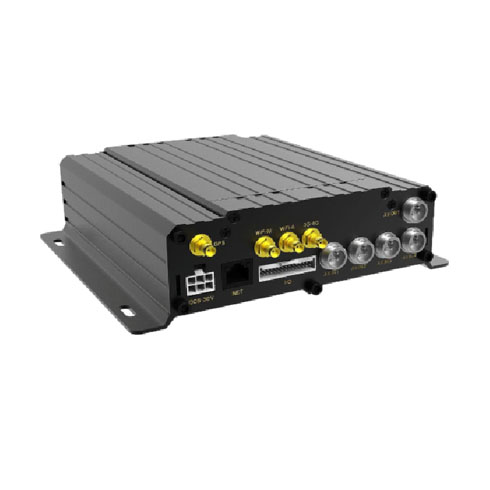

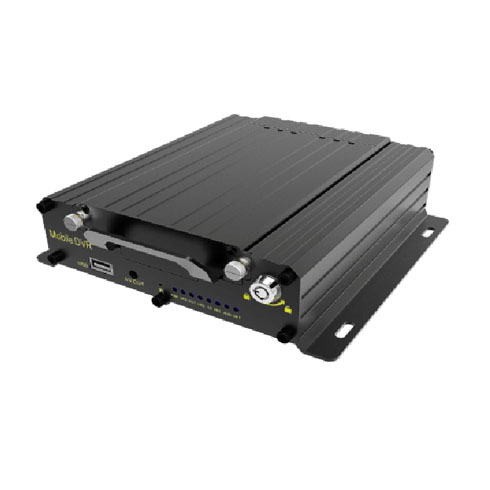

4 Channel realtime 1080P AHD HDD Mobile DVR

Optional VGA output

10V-36V self-adaption wide voltage input, super-low power dissipation

MAX support 2TB HD +128g SD Card, can protect data from shock and dust

Support GPS/BD/G-Sensor module extend

Optional single serial interface or RS485 extend

High reliability BNC connector, high cost performance, reliable and stable

We can help you set up your own server

  • Description
  • Specification
  • Solutions

4 Channel realtime 1080P AHD HDD Mobile DVR

Optional VGA output

10V-36V self-adaption wide voltage input, super-low power dissipation

MAX support 2TB HD +128g SD Card, can protect data from shock and dust

Support GPS/BD/G-Sensor module extend

Optional single serial interface or RS485 extend

High reliability BNC connector, high cost performance, reliable and stable

We can help you set up your own server

OS

Linux

Language

Chinese/English/Others (can be customized)

Video Compression

H.264 Compression Mode

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Can connect to external LED screen. Setup system parameters with the remote control.

Video Record System

Video Input

4CH 1080p input ,aviation connector.1.0VP-P,75惟

Video Output

2CH CVBS+ VGA output for optional, 1.0Vp-p, 75惟,support 1ch whole screen and 8ch segmentation

Preview

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview

Resolution

1080p/720p/D1/HD1/CIF, MAX:4 channels 1080p

Video Quality

0-7 levels, 0 is the highest level, 7 is the lowest level.

Video Standard

PAL:100fps/s,CCIR625 line,50 fields

NTSC:120fps/s,CCIR625 line,60 fields

CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional

HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional

D1:  800Kbps ~ 3Mbps, multi levels video quality optional

720P:4Mbps-6Mbps, multi levels video quality optional

1080P:4Mbps-8Mbps, multi levels video quality optional

Record Mode

The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.

Audio

Audio Input

4CH

Audio Output

2CH

Compression

G.726 compression, 8KB/s speed

Alarm Input

8CH IO Alarm Input; Support alarm linkage function

Alarm Output

2CH power on/off  Alarm Output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc

Communication Interface

3CH RS232, support extension device, such as POS machine, Oil Feul sensor, LED advertising screen , etc.

1CH 485 interface, can connect PTZ,etc.

1CH CAN interface.

Wireless transfer

Support Built-in 3G/4G network, WCDMA,CDMA2000,TDD-LTE,FDD-LTE...

TD-SCDMA Compatible with GPRS,EDGE

Position

Support Built GPS/BD Module,can make playback analysis of vehicle routing

G-Sensor

Support G-sensor

Video Storage

Storage

2.5鈥欌 HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording to protect data from loss

Upgrade

Support USB flash disk updating,SD card upgrade , OTA remote upgrade automatically

File Format

.264 General video format

USB

Front panel supports USB port, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data

Video Playback

Video Search

Search video data by Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time

Support x 2,x4,x8,x16. fast forward or fast backward play

Voltage & Power Consumption

Power Management

Adaptive wide power input, support Wide Voltage, Over-loadOver-voltageShort CircuitReverse Protection..Support Time Setting/Delay power off

Voltage Input

DC:+8V ~ +36V

Voltage Output

+12V@2.5A+5V@2.5A

Power-off Protection

UPS Technology,All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged.

Power Consumption

Normal Working 5W

Working Environment

Temperature

-20鈩 to +70鈩

Humidity

20% to 80%

Safety Management

User/Admin

2 Levels Different Passwords , support screen lock
