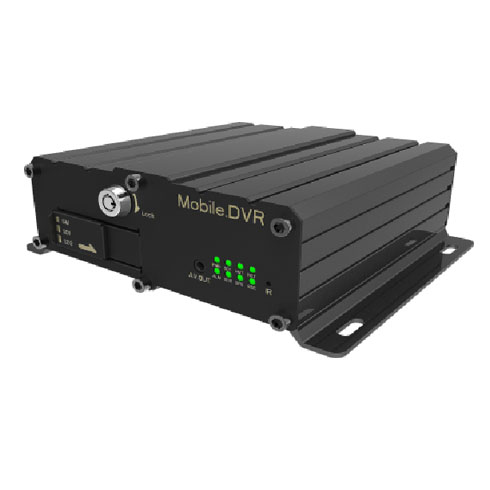

鈼4Channel realtime 720P AHD SD Card Mobile DVR
鈼Optional VGA output
鈼10V-36V self-adaption wide voltage input, super-low power dissipation
鈼SD card storage(Support 2 SD card max 128GB), can protect data from shock and dust
鈼Support GPS/BD/G-Sensor module extend
鈼Optional single serial interface or RS485 extend
鈼High reliability BNC connector, high cost performance, reliable and stable
鈼We can help you set up your own serve
鈼4Channel realtime 720P AHD SD Card Mobile DVR
鈼Optional VGA output
鈼10V-36V self-adaption wide voltage input, super-low power dissipation
鈼SD card storage(Support 2 SD card max 128GB), can protect data from shock and dust
鈼Support GPS/BD/G-Sensor module extend
鈼Optional single serial interface or RS485 extend
鈼High reliability BNC connector, high cost performance, reliable and stable
鈼We can help you set up your own serve
| System | Language | Chinese, English |
| Operation interface | OSD menu | |
| Password security | User password and Administrator password | |
| Video | Video input | 4CH aviation connector |
| Video output |
1CH
AV out + 1CH I/O port + 1CH aviation connector(VGA/BNC) |
|
| Video display | 1ch full screen/4ch split screen | |
| Signal system | PAL: 100 fps, CCIR 625tvl, 50 field | |
| NTSC: 120 fps, CCIR 525tvl, 60 field | ||
| Image compression | H.264 Main profile | |
| Audio | Audio input | 4CH aviation connector |
| Audio output | 1CH AV out port | |
| Compression format | G.726 | |
| Recording & Storage | Image resoluation |
4*AHD(720P)
or 4*Analog(960H/D1/HD1/CIF) |
| Video coding | ISO14496-10 | |
| Video bit rate | CIF: 256Kbps~1.5Mbps, multilevel image quality optional | |
| HD1: 600Kbps~2.5Mbps, multilevel image quality optional | ||
| D1: 800Kbps~3Mbps, multilevel image quality optional | ||
| 720P: 1000Kbps~6Mbps, multilevel image quality optional | ||
| 8 video quality grades, highest grade 1 and lowest grade 8 | ||
| Audio bit rate | 5KB/s | |
| Storage | 2 SD card slots, each max support 128GB, loop recording, auto data overwrite | |
| Alarm | Alarm input | NO |
| Alarm output | NO | |
| Communication ports | RS232 | NO |
| RS485 | NO | |
| RJ45 network | NO | |
| USB | NO | |
| SIM card slot | 1 SIM card slot | |
| Wireless communication | 3G | NO |
| 4G | NO | |
| Wifi | NO | |
| GPS | NO | |
| G-Sensor | NO | |
| Software | PC playback | Video playback and analysis by PC client |
| CMSV6 | Wireless realtime video & audio monitoring, positioning, alarms, etc. | |
| Software upgrade | Support SD card memory upgrade | |
| Electric Parameters | ||
| Input voltage | DC+8V~+36V | |
| Output voltage | +12V, 2.5A; +5V, 2.5A | |
| Video input resistance | 1.0vp-p, 75惟 | |
| Video output voltage | 1.0vp-p, 75惟 | |
| I/O port | High level alarm | 5~24V |
| Low level alarm | <3V | |
| Operation temperature | -20鈩 to +70鈩 | |
| Dimension | 168mm*143mm*56mm | |
